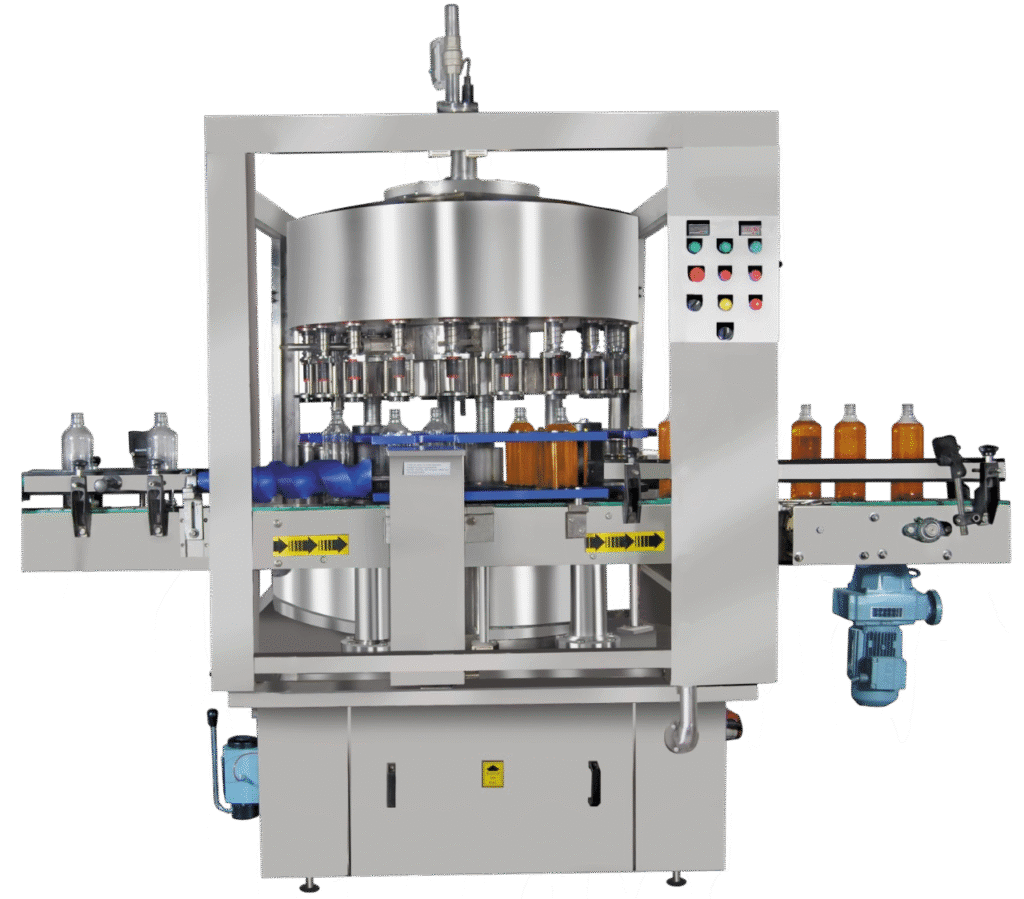

Automatic Gravity Filling Machine
We are a leading Manufacturer, Supplier, and Exporter of Fully Automatic Gravity Filling Machines based in Delhi. Our machines are designed for efficiently filling non-carbonated and non-viscous liquids such as mineral water, juice, milk, liquor, and vinegar into PET bottles. We offer these systems at highly competitive prices.
Product Overview:
This rotary liquid filling machine uses gravity flow through specially engineered nozzles positioned at the base of the tank, ensuring smooth and accurate filling. With no PVC interconnecting tubes, the product travels directly from tank to nozzle, minimizing contamination risk. The system functions as a level filler, maintaining uniform fill levels across all container sizes. It is ideal for PET bottles and can also be equipped with a partial vacuum setup for filling glass bottles.
Technical Specifications:
| Model | L (mm) | B (mm) | Power | Speed (180 ml) |
|---|---|---|---|---|
| 12 Head | 1980 | 1880 | 2.5 HP | 40 BPM |
| 16 Head | 1980 | 1880 | 2.5 HP | 60 BPM |
| 20 Head | 1980 | 1880 | 2.5 HP | 100 BPM |
| 30 Head | 2795 | 2285 | 4.0 HP | 120 BPM |
| 40 Head | 3300 | 2695 | 8.5 HP | 200 BPM |
